GitHub Design System

Overview

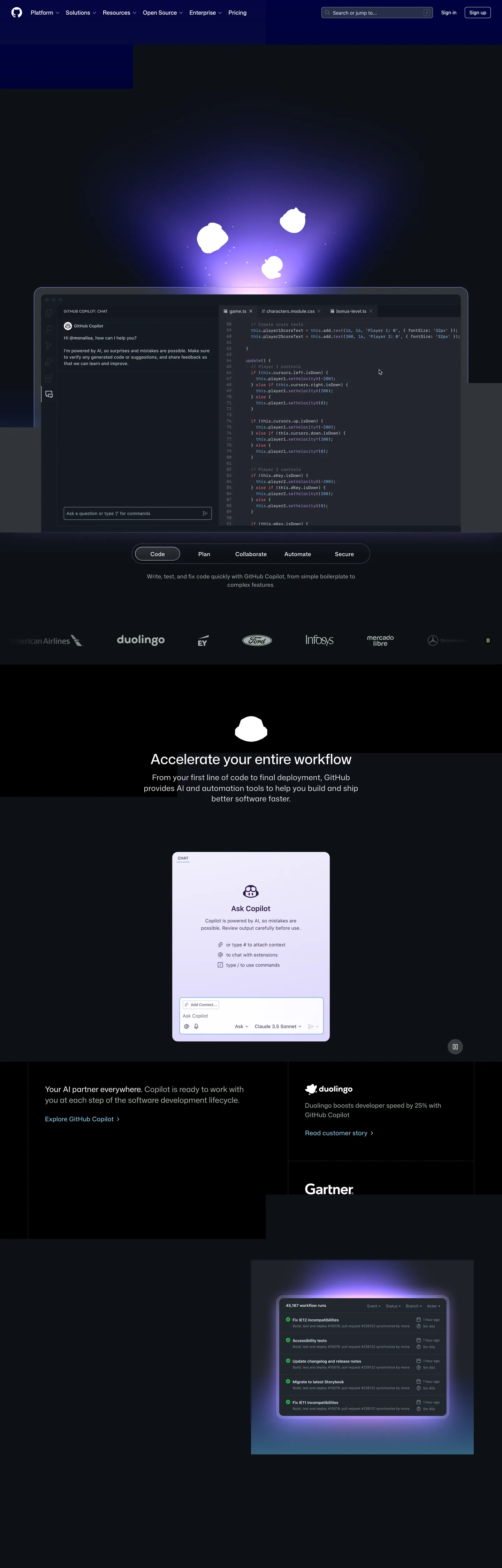

GitHub's marketing canvas is a console-feeling surface wrapped in editorial restraint — {colors.canvas} ("#0d1117") on the product-mirroring sections, with full-bleed {colors.canvas-pure} ("#000000") bands cutting in for hero openers and the Copilot CTA region. Body and headline ink hold "#ffffff" against the dark; the load-bearing chromatic token is an arctic pale-blue {colors.link-blue} ("#8dd6ff") that lights every link rest, hero pill stroke, and Copilot CTA label across the page. Where most developer platforms reach for a saturated brand purple or electric green as primary voltage, GitHub keeps the link blue dominant and reserves {colors.accent-green} ("#5fed83") for activity-glow gradients only.

Two-greens-two-jobs: the system runs two distinct green tokens with non-overlapping roles. Accent green {colors.accent-green} ("#5fed83") lights the workflow-activity glow and the Copilot CTA-banner shadow start — it never fills a button. Success-emphasis green {colors.success-emphasis} ("#08872b") carries the actual primary-action paint via --button-primary-bgColor-rest. This split is the single most distinctive token-architecture move in the system: separating "glow" from "button" prevents the bright lime from leaking into action surfaces where it would read as a status badge.

Display type runs Mona Sans variable at weights that land between regular and medium — never bold. The hero hits weight 425 at 64px with -2.24px letter-spacing for an editorial compression rather than a tech-bombastic shout; h2 sits at weight 460 at 40px with neutral tracking; h3 card titles at weight 480 at 22px. Unlike the convention of cranking dev-platform display to weight 700, GitHub uses weight variation in the 425-480 micro-band as the entire display strategy. The body family is Mona Sans VF at 14-18px; code tabs and lineNumbers run ui-monospace / SF Mono.

Pill-as-segmented-control: the Code/Plan/Collaborate/Automate/Secure switcher rides a 60px pill radius (the page's dominant radius value at 12 occurrences) over a {colors.surface-1} track. Cards land at 16px corners (9 occurrences); CTA buttons hold 8px (6 occurrences) — a developer dialect. Depth comes from the dual-canvas band switch and the purple-to-indigo radial atmospheric behind the Copilot IDE mockup, composed of {colors.glow-violet} ("#9350ff"), {colors.glow-indigo} ("#5049c2"), {colors.glow-lavender} ("#7873cb"), and {colors.glow-deep} ("#0e0aa2"). The glow is the page's only chromatic atmospheric — strictly scoped to one Copilot moment.

Key Characteristics:

• Dual-canvas system — {colors.canvas} ("#0d1117") for product-surface sections and {colors.canvas-pure} ("#000000") for hero and CTA bands.
• Single chromatic link voltage — {colors.link-blue} ("#8dd6ff"), count 138, mapped to --brand-color-text-link-rest.
• Two greens, two jobs — {colors.accent-green} for activity-glow gradients only; {colors.success-emphasis} for the primary-action paint.
• Variable-weight Mona Sans — display runs 425-480, never bold 700.
• 60px pill radius dominates — the Code/Plan/Collaborate/Automate/Secure segmented switcher.
• Single chromatic atmospheric — the purple-to-indigo Copilot glow, scoped to one region.
• Code-tab and IDE mockups in {colors.surface-1} ("#151a22") panels with 16px corners; chrome stays minimal so the product captures carry the page.

Colors

The palette reads as a structural ladder around the dark canvas plus one arctic-blue voltage and two greens with split duty.

• Canvas (#0d1117) — frequency 6. Used as bg (6). The product-mirroring section floor; mapped as --bgColor-default, --brand-color-canvas-subtle, --codeMirror-bgColor. The single most-named surface variable in the page.
• Canvas pure (#000000) — frequency 18. Used as bg (13), text (2), border (2). Full-bleed hero and CTA bands; mapped as --brand-SubNav-bgColor, --brand-color-canvas-default. The band-switch partner that punches through {colors.canvas} at section boundaries.
• Canvas inset (#010409) — count 0 in the visible viewport, but mapped to --bgColor-black, --overlay-bgColor, --dashboard-bgColor. The deepest dark, reserved for overlays and the dashboard inset.
• Surface 1 (#151a22) — frequency 3. Used as bg (2), border (1). Card and panel surface for code tabs and the Copilot prompt; mapped as --card-bgColor, --header-bgColor, --bgColor-muted.
• Surface 2 (#24292f) — frequency 10. Used as bg (2), text (2), border (6). Button-default rest and hovered control surface; mapped as --button-default-bgColor-rest, --control-bgColor-rest.
• Surface 3 (#2e374a) — frequency 1. Used as bg (1). Active-state lift for default buttons; mapped as --button-default-bgColor-active, --control-bgColor-active.
• Ink (#ffffff) — frequency 677. Used as text (346), border (319), gradient (5), bg (7). The dominant text and hairline token; mapped to over 80 brand and component variables. Carries headlines, body, and the primary-button border-rest stroke.
• Ink default (#f0f6fc) — frequency 135. Used as text (70), border (65). The CodeMirror foreground and diff-addition-line text; mapped as --fgColor-default, --codeMirror-fgColor.
• Ink muted (#9198a1) — frequency 156. Used as text (78), border (78). Caption ink and disabled-control color; mapped as --fgColor-muted, --control-fgColor-placeholder. The workhorse secondary text.
• Ink subtle (#a4aea6) — frequency 96. Used as text (48), border (48). Subheadline and eyebrow ink on dark; mapped as --brand-color-text-muted, --brand-color-text-subtle.
• Ink neutral (#7c8980) — frequency 4. Used as text (2), border (2). The "neutral emphasis" gray; mapped as --brand-color-neutral-emphasis, --brand-color-neutral-muted.
• Hairline (#484f58) — frequency 2. Used as border (2). The strongest hairline rule; mapped as --display-gray-scale-3. Carries form-field and card divider strokes.
• Link blue (#8dd6ff) — frequency 138. Used as text (70), border (68). The page's load-bearing chromatic voltage; mapped as --brand-color-text-link-rest, --brand-InlineLink-color-rest, --brand-Link-color-accent. Reserved for link rests, the primary-button label, and the hero pill stroke.
• Link accent (#4493f8) — count 0 in viewport, mapped to --fgColor-link, --fgColor-accent, --brand-color-focus. The product-surface link blue (vs. the marketing arctic blue) — appears inside the IDE mockups.
• Accent green (#5fed83) — frequency 5. Used as text (2), border (2), gradient (1). The activity-glow voltage; mapped as --brand-color-accent-primary, --brand-CTABanner-shadow-color-start, --brand-tiles-highlightColor. Never fills a button.
• Success emphasis (#08872b) — frequency 2. Used as bg (2). The primary-action paint; mapped as --button-primary-bgColor-rest, --bgColor-success-emphasis. The token that actually carries bgColor on the green CTA button.
• Danger red (#ff7b72) — count 0 in viewport, mapped to --brand-color-text-danger, --brand-color-text-error, --color-prettylights-syntax-keyword. Error text and syntax-keyword highlighting inside code surfaces.
• Glow violet (#9350ff) — frequency 2. Used as gradient (2). The brightest stop in the Copilot purple atmospheric.
• Glow indigo (#5049c2) — frequency 3. Used as gradient (3). The mid-tone of the Copilot radial.
• Glow lavender (#7873cb) — frequency 2. Used as gradient (2). The transitional lavender between violet and indigo.
• Glow deep (#0e0aa2) — frequency 1. Used as gradient (1). The deep-indigo edge of the Copilot atmospheric; mapped as --base-color-scale-blue-9.
• Glow plum (#e6b7fe) — frequency 3. Used as gradient (3). The pink-violet top edge of the Copilot radial; mapped as --display-plum-scale-9.

Typography

A single sans family plus one mono — Mona Sans variable does all the lifting from 64px hero down to 12px caption, with ui-monospace scoped to code tabs and lineNumbers.

Mona Sans (variable) is the single sans family. The hero hits weight 425 at 64px with -2.24px letter-spacing — a variable-weight cut that lands between regular (400) and medium (500), compressed by aggressive negative tracking for editorial density rather than tech-bombastic shout. H2 sits at weight 460 at 40px with neutral tracking ("Accelerate your entire workflow"). H3 card titles run weight 480 at 22px. Body large is 18px weight 400 with 0.18px positive tracking (paragraph copy under hero). Body medium is 16px weight 400, used on buttons, nav links, and label captions. Mona Sans VF (the variable-only cut) handles 14px nav and link surfaces. Mona Sans ships under the SIL Open Font License, so substitution is rarely necessary — Inter at weights 400/500 with -1.5% tracking on display is the closest free fallback.

ui-monospace / SF Mono runs every code-tab header and CodeMirror line in the IDE mockup at 14px weight 400. The mono is scoped exclusively to code surfaces — it never carries body, nav, or button content. JetBrains Mono or Geist Mono substitute cleanly.

The signature typographic move is weight 425-480 as the entire display range — no weight 700 anywhere on the marketing canvas. Where most dev platforms crank display bold to compete with hero illustrations, GitHub uses Mona Sans's variable-weight cut to land tiny gradations between 400 and 500. The 64px hero at weight 425 reads as a magazine headline rather than a SaaS callout.

Layout

The system runs on a 4px base unit: 2, 4, 8, 12, 16, 24, 48, 64, 96. The 96px value handles vertical section padding — the page rhythm is generous, with section bands switching canvas color rather than just adding more whitespace. Card internal padding holds 24px consistently, giving content room to breathe inside {colors.surface-1} panels. The container strategy alternates: hero text caps at a reading column (~640-924px), while the Copilot IDE mockup spans wider to let the code tabs breathe. Customer logo strips run 48px of vertical padding inside their own canvas band, separating them from adjacent sections through canvas color rather than gap.

Elevation & Depth

Elevation is achieved through canvas band switching and one chromatic atmospheric — not through shadows. The marketing surface carries near-zero box-shadows on cards or buttons. Hierarchy lifts via the dual-canvas swap ({colors.canvas} ↔ {colors.canvas-pure}) at section boundaries, and via the surface ladder running from {colors.canvas} up through {colors.surface-1}, {colors.surface-2}, {colors.surface-3}. The Copilot IDE mockup sits over the page's only true atmospheric — the purple-to-indigo radial composed of {colors.glow-violet} through {colors.glow-deep} with {colors.glow-plum} at the top edge. The workflow-runs region uses {colors.accent-green} as a parallel single-color glow. No drop-shadow tokens, no elevation tiers, no soft-edge cards floating over canvas.

Shapes

A three-tier radius scale. Pill 60px (the page's dominant radius at 12 occurrences) carries the Code/Plan/Collaborate/Automate/Secure segmented switcher and a few wide CTA shapes. Card 16px (9 occurrences) covers the Copilot prompt card, the code-tab IDE panel, and feature surfaces. Button 8px (6 occurrences) holds the primary Copilot CTA at 56px height and most action buttons — a developer dialect rather than the consumer 12-14px feel. The 24px tier (7 occurrences) handles the search-field hairline and a few intermediate surfaces. Full-circle 9999px is reserved for activity dots and avatar masks. Everything else stays at 0px — full-bleed bands have no rounded corners, the wordmark sits flat, and the customer-logo strip is flush-edged.

Components

The component vocabulary covers the dark top-nav, the search field, three button variants, the pill segmented switcher, the code-tab IDE panel, the Copilot prompt card, the workflow-runs table, customer-story and logo strips, the email-capture text input, the CTA banner, and link text. The top-nav sits on {colors.canvas-pure} at 64px height with {typography.body-md} nav links. The button-primary is the headline Copilot CTA: {colors.surface-2} background, {colors.link-blue} label, white 1px stroke, 8px radius, 6px/28px padding, 56px height — the page's most visually-loaded interactive element. The button-success carries {colors.success-emphasis} for the actual primary-action paint elsewhere on product surfaces. The pill-switch runs {rounded.pill} 60px with {colors.surface-1} track and a {colors.surface-2} selected state. The code-tab-panel holds {rounded.xl} 16px corners over {colors.surface-1} with a {colors.surface-2} hairline. The copilot-prompt-card mirrors the panel geometry but for the chat-style mockup. The customer-story-card sits on a full-bleed {colors.canvas-pure} band at 48px padding, no radius — the band itself is the card.

Do's and Don'ts

• Do hold {colors.link-blue} ("#8dd6ff") for every link rest, the primary-button label, and the hero pill stroke. This is the single load-bearing chromatic voltage; count 138 across the page.
• Don't use {colors.accent-green} ("#5fed83") as a button background. It is mapped to --brand-color-accent-primary and the CTA-banner shadow gradient — pure glow duty. For green primary actions, use {colors.success-emphasis} ("#08872b") via --button-primary-bgColor-rest instead.
• Do switch canvas color at section boundaries between {colors.canvas} ("#0d1117") and {colors.canvas-pure} ("#000000"). The dual-canvas band switch is the page's primary hierarchy signal — using a single canvas color flattens every section.
• Don't crank display weight to 700. Mona Sans hero sits at weight 425, h2 at weight 460, h3 at weight 480. The variable-weight micro-band is the entire display strategy — bold display breaks the editorial register.
• Do reserve the purple-to-indigo radial ({colors.glow-violet} → {colors.glow-indigo} → {colors.glow-lavender} → {colors.glow-deep} with {colors.glow-plum} at the top edge) for the Copilot region only. It is the page's single chromatic atmospheric.
• Don't apply the Copilot glow to workflow-runs cards or customer-logo strips. The workflow region carries its own activity-green glow via {colors.accent-green}; mixing glows breaks the single-atmospheric rule.
• Do use 60px pill radius for segmented switchers and 8px for action buttons. The pill is the page's dominant radius (12 occurrences); the 8px button corner is the developer-dialect default.
• Don't use 12px or 24px radius on action buttons — those tiers belong to the search field hairline and intermediate card surfaces. Mixing radius tiers across components breaks the three-tier discipline.
• Do use ui-monospace / SF Mono for every code-tab header and CodeMirror lineNumber. The mono is strictly scoped to code surfaces — Mona Sans body in a code tab reads as a marketing label, not a file path.

Known Gaps

• Light mode is not documented because the public marketing surface is dark-only. The product itself ships a light theme inside the in-app surfaces shown in mockups; those tokens are not represented here.
• Motion timings (the Copilot glow pulse, the workflow-runs activity sweep, the carousel auto-advance) are out of scope — only static surface tokens captured.
• The Mona Sans and Mona Sans VF families are open-source under SIL OFL — no licensed substitute required, but the variable-axis weight values (425, 460, 480) require a variable-font runtime.
• Form-field error and validation states beyond the email-capture input are not visible on the inspected marketing surface.
• The danger red {colors.danger-red} ("#ff7b72") and link accent {colors.link-accent} ("#4493f8") are mapped to product variables (--color-prettylights-syntax-keyword, --fgColor-link) but appear inside IDE mockups rather than as marketing-chrome tokens.
• The customer-logo strip is captured as a marketing region; the underlying logo SVGs are external brand assets, not GitHub design tokens.
