Steam Design System

Overview

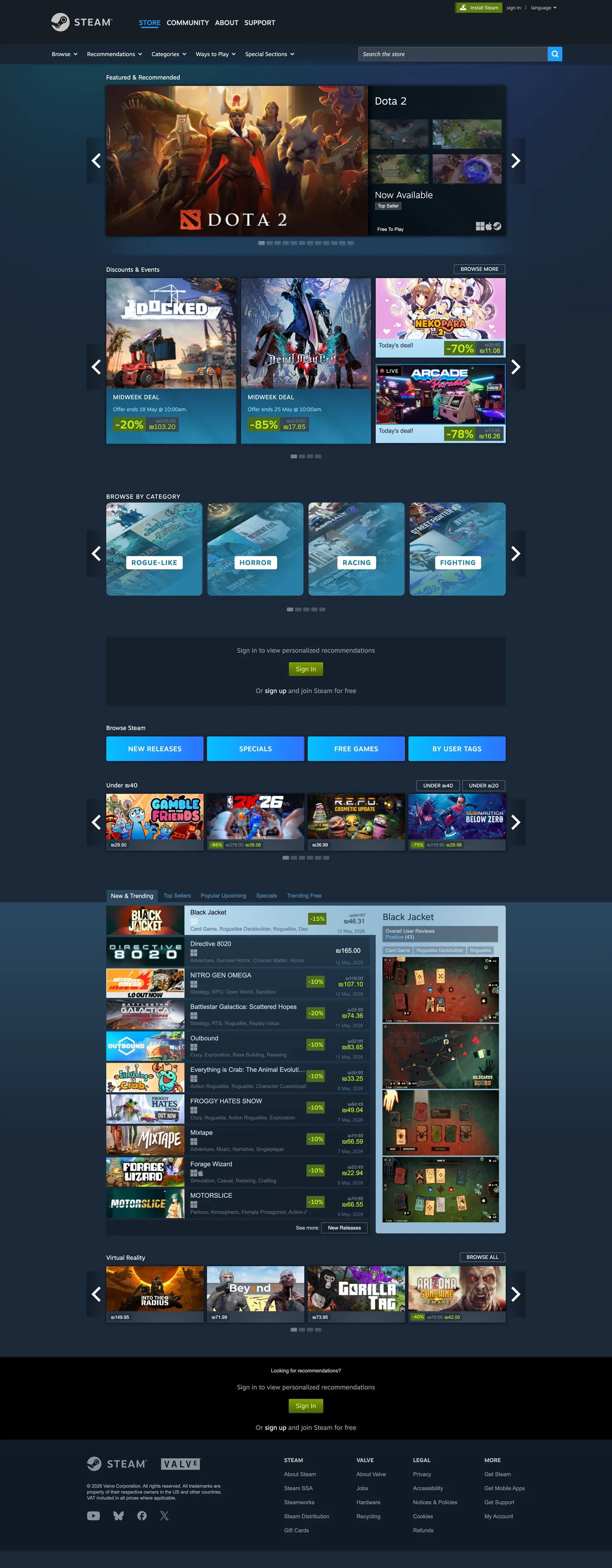

Steam's storefront is one of the few large-scale consumer surfaces still running an information-density-first chrome instead of a whitespace-first marketing layout. The page sits on a four-step navy ladder — {colors.canvas} ("#1b2838") for the page itself, {colors.rail} ("#141f2c") for the global header and rail, {colors.tile} ("#283645") for the game-tile and card backgrounds, and {colors.inset} ("#384959") for the hairline and inset that separates carousels. Every CTA is a horizontal gradient pill cut at a 2px corner — no full rounding anywhere on the page.

Dual voltage grammar: where most consumer marketplaces commit to one accent voltage, Steam runs two in parallel. The install pill is a vertical lime gradient from {colors.install-green-top} ("#a4d007") at the top stop down to {colors.install-green-bottom} ("#5c7e10") at the bottom, with a {colors.install-highlight} ("#beee11") 1px highlight at the top edge — reserved for "Install Steam" and "Play" actions. Every other interactive surface — Add to Cart, Visit Store, browse categories — uses a cyan gradient running {colors.cta-cyan-bright} ("#06bfff") through {colors.cta-cyan-mid} ("#2881a7") to {colors.cta-blue} ("#2d73ff"). The page tells you by hue alone whether an action commits you to download or merely navigates you elsewhere.

Forum-density geometry: Steam's radius scale lives at 2px, 3px, 4px, and 10px, with 2px dominating 63 of 131 captured corners. There is no full pill anywhere, no 16px-rounded card, no 8px softening — every tile, button, dropdown, and price tag is a sharp horizontal rectangle. The chrome reads as a 2003 PC-enthusiast bulletin board reskinned with high-resolution gradients and a sharper typeface, and that is the deliberate brand signature.

Unlike the convention of pairing a single display face with a single body face, Steam runs a dual-font split: Motiva Sans (proprietary Valve face) handles display and chrome at weights 200 through 700, while Arial 11–15px carries every long-tail body and link span — 101 captured spans use 11px Arial weight 400 alone. The split is functional: Motiva for things the brand owns, Arial for the high-frequency utility text that needs to render at every system fallback.

Key Characteristics:

• Four-step navy canvas ladder: {colors.canvas} ("#1b2838") → {colors.rail} ("#141f2c") → {colors.tile} ("#283645") → {colors.inset} ("#384959")
• Lime install gradient ({colors.install-green-top} "#a4d007" → {colors.install-green-bottom} "#5c7e10") reserved for commit actions only
• Cyan secondary gradient ({colors.cta-cyan-bright} "#06bfff" → {colors.cta-cyan-mid} "#2881a7" → {colors.cta-blue} "#2d73ff") for every other CTA
• 2px corner radius across 63 of 131 captured chrome surfaces — the angular-geometry signature
• Dual-font split: Motiva Sans 200-700 for chrome, Arial 11-15px for body
• Slate body text tones ({colors.subtitle} "#c6d4df", {colors.body-mute} "#8b929a") rather than warm grey, locking the page tonally to the navy canvas
• Pure white {colors.on-canvas} ("#ffffff") reserved for hover-state headers and high-emphasis labels — never for running body copy

Colors

• Install Lime Top (#a4d007) — frequency 2 (gradient 2). The top stop of the install-button vertical gradient — Steam's commit-action voltage.
• Install Olive Mid (#799905) — frequency 2 (gradient 2). The middle stop of the install gradient — bridges the lime top to the deep olive bottom.
• Install Olive Bottom (#5c7e10) — frequency 1 (bg 1). The bottom stop of the install gradient — anchors the pill in the canvas.
• Install Highlight (#beee11) — frequency 216 (text 108, border 108). The 1px highlight border at the top edge of every install pill, and the accent text inside sale tags — the gradient's edge-light.
• Install Deep (#4c6b22) — frequency 59 (bg 55, gradient 4). The fill for sale-event banners and the "Special Offer" badge — saturated enough to read at the deep end of the canvas ladder.
• CTA Cyan Bright (#06bfff) — frequency 4 (gradient 4). The bright top stop of every secondary "Add to Cart" / "Visit Store" pill gradient.
• CTA Cyan Mid (#2881a7) — frequency 60 (text 20, border 20, gradient 20). The workhorse middle stop of the secondary CTA gradient and the active filter chip fill.
• CTA Cyan Link (#66c0f4) — frequency 2 (text 1, border 1). The inline link color throughout body copy — bright enough to register against the navy canvas.
• CTA Blue (#2d73ff) — frequency 4 (gradient 4). The deepest blue gradient stop for navigation pills on the home tabbed nav.
• CTA Blue Deep (#1a9fff) — frequency 3 (text 1, bg 1, border 1). The active-state fill for the "What's New" and "Top Sellers" tabs.
• Canvas Navy (#1b2838) — frequency 2 (bg 1, gradient 1). The page-itself canvas — the deepest non-black surface and the default backdrop.
• Rail Navy (#141f2c) — frequency 63 (bg 56, border 2, gradient 5). The global header and side-rail fill — the structural chrome below the canvas.
• Tile Slate (#283645) — frequency 70 (text 12, bg 6, border 12, gradient 40). The game-tile and dropdown background — one notch lighter than the canvas to lift cards off the page.
• Inset Hairline (#384959) — frequency 97 (text 21, bg 13, border 21, gradient 42). The carousel-divider hairline and the inset border on text inputs — the lightest surface in the navy ladder.
• Shadow (#000000) — frequency 144 (shadow 98, bg 34). The drop-shadow color under floating elements and the inset shadow under the global header.
• On-Canvas White (#ffffff) — frequency 1671 (text 801, bg 64, border 801). The hover-state header color and active-filter label — pure white is reserved for emphasis, never for running body text.
• Slate Subtitle (#c6d4df) — frequency 325 (text 162, border 162). The dominant body-text color across game titles, descriptions, and category labels — the cool slate that ties body copy to the navy canvas.
• Slate Mute (#8b929a) — frequency 86 (text 43, border 43). The secondary text color for tags, meta information, and review counts.
• Slate Grey (#738895) — frequency 108 (text 54, border 54). The tertiary text color for footer links, copyright lines, and disabled chrome.
• Slate Deep (#5e6d7c) — frequency 100 (text 50, border 50). The dimmest readable text color for legal disclaimers and inline form helper text.
• Hairline Slate (#4c6c8c) — frequency 20 (text 10, border 10). The thin 1px divider color between dropdown rows and accordion sections.
• Warning Red (#a94847) — frequency 9 (shadow 9). Used only as a shadow color under modal dialogs and inline validation pop-ups — there is no red text or red badge fill in the captured chrome.

Typography

Steam runs a dual-font split rather than a single typographic voice. Motiva Sans (proprietary Valve face, also used in the Steam client UI) covers display, chrome, and emphasized labels at weights 200, 300, 400, 500, and 700. The signature display tier is 26px weight 500 at 34px line-height for featured-strip headlines, 24px weight 300 at 28px for sub-section headers, and a curious 21px weight 200 at 18px line-height — a weight that almost no other consumer storefront ships in production. Heading-md sits at 16px weight 700 with 1.104px letter-spacing, the tracking that gives Steam's "STORE / COMMUNITY / ABOUT / SUPPORT" navigation its tightly-set bold rhythm.

Arial, Helvetica, sans-serif covers the long tail of body and link copy at 11px, 12px, 13px, and 15px. 101 of the captured spans use 11px Arial weight 400 alone — the meta-info layer (review counts, release dates, tag chips, footer links) that has to render at every system fallback. The split is functional, not decorative: Motiva for things the brand owns (display headers, primary nav, button labels, featured-strip titles), Arial for the dense utility tier that must remain legible at 11–12px on every operating system and locale fallback.

Layout

The page operates on a fixed 940px content column centered against the navy canvas, with a 1440px outer breakpoint. Cards lock to a 12-column game-tile grid with no fluid gutters — the rhythm is column-snapped rather than spacing-token-snapped. Vertical rhythm steps at {spacing.xs} (5px), {spacing.md} (10px), {spacing.base} (12px), {spacing.xl} (16px), {spacing.xxl} (24px), and {spacing.section} (96px) for between-rail dividers. The dominant 5px gap is the inter-tile spacing inside carousels — tight enough that the page reads as a continuous wall of inventory rather than a series of breathing cards.

Elevation & Depth

Steam's elevation system is the navy ladder itself, not a shadow scale. Surfaces step up the canvas hierarchy by darkening or lightening one notch — {colors.canvas} ("#1b2838") for the page → {colors.rail} ("#141f2c") for the header → {colors.tile} ("#283645") for cards → {colors.inset} ("#384959") for the inset border. Drop shadows exist only in two places: under the global navigation bar (a 1px {colors.shadow} "#000000" inset at 98 captured shadow declarations) and under floating dropdowns. Game tiles cast no shadow — they rely on the surface-step alone for elevation. Surface-as-elevation: where most marketplaces ship a shadow scale to lift cards, Steam uses one-notch background shifts on a navy ladder, which is part of why the chrome reads as flat-dense rather than airy-layered.

Shapes

The radius scale runs 0px, 2px, 3px, 4px, and 10px. 2px corners dominate — 63 of 131 captured radii sit at 2px, applied to every game tile, button, dropdown, search bar, sale tag, and inline price chip. The 10px radius (20 captured) is reserved for a small set of rounded-top frame containers around tabbed carousel groups. 4px (22 captured) appears on a handful of mid-weight modal cards and the cookie consent strip. There is no full-pill geometry anywhere on the page — Steam's chrome is rigorously rectangular, and the absence of soft rounding is the geometric signature.

Components

• Install Pill (button-install) — the lime gradient CTA reserved for "Install Steam" and "Play" actions. 31px tall, 6px/15px padding, 2px corner, {colors.install-highlight} ("#beee11") top-edge highlight.
• CTA Pill (button-cta) — the cyan gradient CTA for "Add to Cart" / "Visit Store" / "Browse" actions. Same geometry as the install pill, different voltage.
• Secondary Button (button-secondary) — flat {colors.inset} ("#384959") fill, used for low-priority actions like "Read More" and "Show All".
• Text Input (text-input) — 34px tall, {colors.rail} ("#141f2c") fill, 2px corner, no visible border. Body copy renders at {colors.on-canvas} ("#ffffff") at 13px Arial.
• Search Bar (search-bar) — 30px tall variant of the input used in the global header. Placeholder copy at {colors.subtitle} ("#c6d4df").
• Primary Nav (primary-nav) — the global header bar, 104px tall, {colors.rail} ("#141f2c") fill, with Motiva Sans 16px weight 700 labels at 1.104px tracking.
• Sub Nav (sub-nav) — the 33px-tall secondary navigation below the global header, with category links in {colors.body-mute} ("#8b929a").
• Game Tile (game-tile) — the carousel item itself, a sharp-cornered image card with no padding and a {colors.tile} ("#283645") fill that shows briefly during image load.
• Game Card (game-card) — the wider product card on the home page with 12px padding and a {colors.tile} ("#283645") fill.
• Featured Strip (featured-strip) — the wide hero card at the top of the home page with Motiva Sans display-lg headlines on an {colors.inset} ("#384959") fill.
• Carousel Paddle (carousel-paddle) — the left/right arrow at the edge of each game-tile carousel. 40px tall, {colors.inset} ("#384959") fill, 2px corner.
• Category Pill (category-pill) — the small filter chip used in faceted-browse rails. Activates by swapping to {colors.cta-cyan-mid} ("#2881a7") fill.
• Price Tag (price-tag) — the small chip showing the game's base price at {colors.inset} ("#384959") fill.
• Sale Tag (sale-tag) — the prominent discount badge with {colors.install-deep} ("#4c6b22") fill and {colors.install-highlight} ("#beee11") text — the only place "BEEE11" appears as a text color.
• Dropdown (dropdown) — the sort and filter dropdown menus. 30px tall, {colors.rail} ("#141f2c") fill.
• Tooltip (tooltip) — the hover-state floating tip used over tag chips and review badges.
• Link Inline (link-inline) — body-copy hyperlink in {colors.cta-cyan-link} ("#66c0f4") — the only place that lighter cyan appears.
• Footer Section (footer-section) — the global footer band in {colors.rail} ("#141f2c") with caption-tier 11px Arial copy.

Do's and Don'ts

Do

• Use the lime gradient ({colors.install-green-top} to {colors.install-green-bottom}) for install and play actions only — its scarcity is what makes it carry weight.
• Use the cyan gradient ({colors.cta-cyan-bright} to {colors.cta-blue}) for every other CTA — the two-voltage grammar collapses if you reuse lime for navigation.
• Render body copy in {colors.subtitle} ("#c6d4df") or {colors.body-mute} ("#8b929a"), never in pure white — pure white is reserved for hover-state emphasis.
• Set the 1.104px letter-spacing on 16px Motiva Sans weight 700 headings — the tracking is the brand's chrome signature.
• Apply 2px corners ({rounded.xs}) to every interactive surface — the angular geometry is the system's shape voice.

Don't

• Don't apply the lime install gradient to "Add to Cart" or "Buy Now" — those are cyan-voltage actions. Mixing the two breaks the commit-versus-navigate signal that the page relies on.
• Don't use full-pill rounding (9999px) anywhere. The 2px corner is non-negotiable — a fully-rounded CTA on Steam's navy canvas reads as a foreign pill from a different brand entirely.
• Don't reach for {colors.on-canvas} ("#ffffff") for body paragraph text. White at body weight against the navy canvas produces a glare that breaks Steam's tonal unity — drop to {colors.subtitle} ("#c6d4df") instead.
• Don't substitute Arial with Inter or system-ui for the 11px caption tier. Inter at 11px has a different x-height and rendering pattern that breaks the dense forum-grid information rhythm Arial provides.
• Don't add card drop shadows. Steam's elevation is surface-step, not shadow-step — adding a 0px 2px 4px rgba(0,0,0,0.2) shadow under a game tile imports a foreign elevation grammar.

Known Gaps

• Steam client (desktop application) chrome is not captured — the in-app library, friends panel, and overlay use a different layout system from the web store.
• Community hub, workshop, and profile pages fall outside the captured set and use a denser tabbed-rail layout.
• Per-title custom themes — individual game pages can override the base palette with publisher hero art and custom CTA color (e.g. the "Half-Life Alyx" page uses orange CTA accents). The base storefront chrome documented here is the default.
• Sale event overlays (Summer Sale, Winter Sale, Steam Next Fest) introduce temporary banner art and per-event gradient overrides that this document does not describe.
• Mobile browser views were not captured directly — Steam reflows the same 940px column at narrower breakpoints with a hamburger drawer.
• Hover-state full color shifts are not documented per system policy.
• Form validation states (success / error inline messages) are not present in the captured surfaces beyond the {colors.warning} ("#a94847") shadow color.
